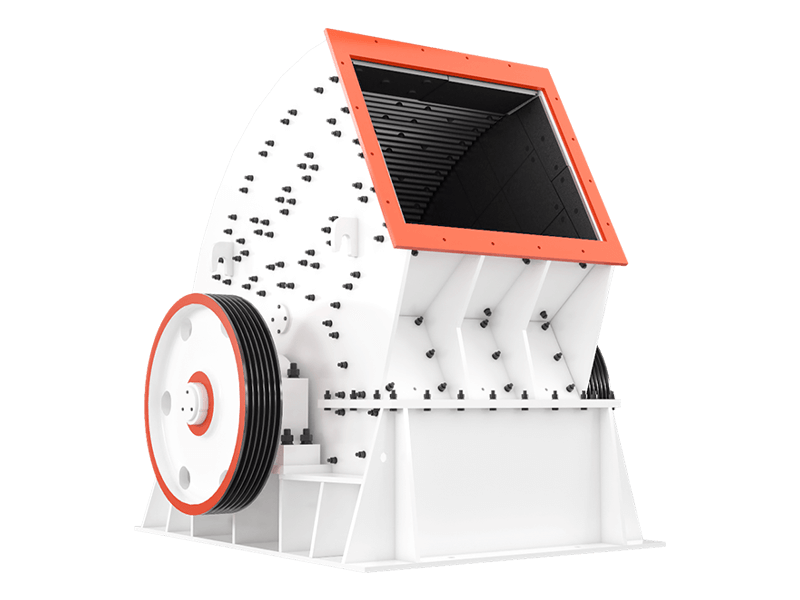

PCZ Heavy Hammer Crusher

Features

PCZ series hammer crusher is new type of crusher improved based on the PC series crusher, according to user feedback and breaking industry developments, and combined with experimental data and research and development of stone crushing test.

Advantage

1. PCZ heavy hammer crusher is used to crush stone, molding at a time, without a secondary crushing. There is 40% cost reduction with lower energy consumption and small investment.

2. PCZ heavy hammer crusher, shape up by single crushing without second time, so to reduce the cost by 40%, which ensure energy and investment saving.

3. PCZ heavy hammer crushers are especially applicable for crushing the limestone and medium-hardness stones less than 200Mpa.

Applications

PCZ heavy hammer crusher is widely used in the fields of mine, smelting, building materials, road, railway, irrigation, chemical industry, etc. It is especially used to crush limestone and medium hard materials whose compression strength are less than 200Mpa.

Principles

Main working part of PCZ type hammering machine is the rotor of hammer (also known as the hammer head), and the rotor is formed by spindle, disc, pin roll and a hammer, and the rotor is driven by motor to make high-speed revolution in crushing cavity. Materials are fed from the upper feeding port into the machine, and then be crushed by impact, shear, grinding and crushing of high-speed rotating hammer. Sieve is designed in the lower part of the rotor, so crushed item less than the size of mesh size will be discharged through the sieve board, while crushed item larger than the opening size will be left on the sieve plate for continues crushing and grinding by hammer, and finally be discharged through the sieve board.
